磨光工艺
以获得最佳研磨成效。 研磨在校准后进行 ，最多可使用 10 个高机能工作站。
磨光工艺
客户的利益
- 平面和滑润的皮带传输带来高质量、可沉复的产品
- 由于不变和高质量的结构 ，机械经久耐用
- 由于？榛杓疲üぷ髡灸芄桓淖埃┖陀糜诠ひ展こ痰耐ㄓ眉谐峙 ，因而拥有很高的矫捷性
- 电动高度调节和全自动接触压力节造可节俭功夫并提高用户舒服度
- 由于解除了研磨水回收（无水处置）和特殊废料处置 ，干式处置节俭了成本和空间
- 由于使用研磨过程中产生的尘埃作为混凝土混合物中的填料 ，可能进一步降低成本。

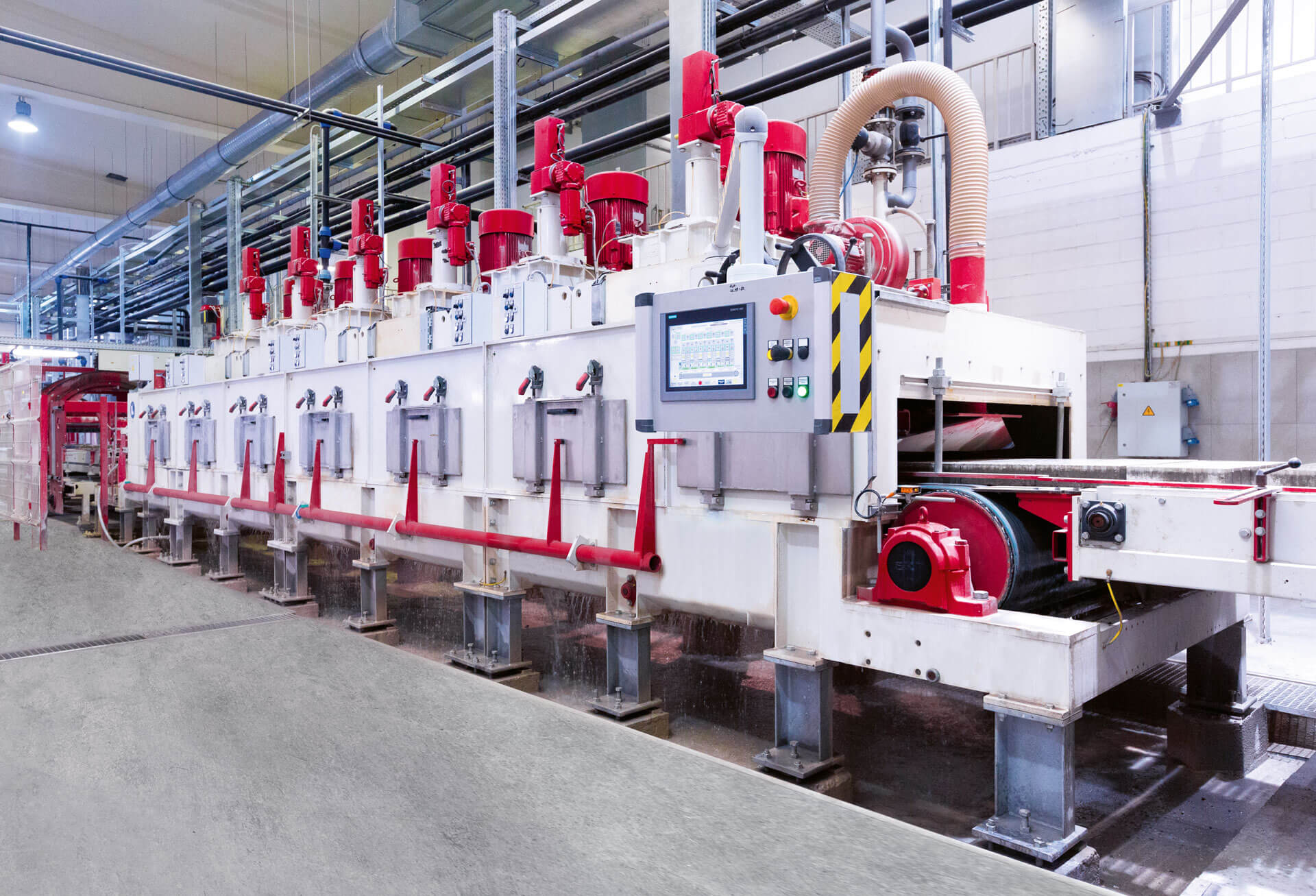

铺路石和平板的研磨。校准是获得最佳研磨了局的先决前提。校准后 ，产品在拥有多达10个大功率工位的磨床中研磨。凭据使用的研磨站数量 ，能够实现从粗糙到精密的表表表观Ｄ芄辉诟墒Ｊ较陆写χ。 10个工位的湿法处置 ，最大可达到220的研磨度。仅建议对硬石比例最大为 50% 的 facemix 进行干法处置。工作宽度为 850 和 1,200 毫米。
由钢造成的实心隧路式管片结构。由灰铸铁造成迪滕装床身与高精度研磨锰硬化钢板和多层铠装西格林传送带 ，可将产品平面和安稳地输送通过站点。每个单独的工作站都能够建设铣削金刚石、滑润或研磨段。装置在通用夹持盘上的铣削金刚石、滑润或研磨段。通过燕尾导轨急剧更换工具。
变频节造的主传动和各站的垂直活动。每个工位都有接触压力节造；到ㄉ枇硕懒⒌慕谠旌涂墒踊僮髅姘Ｄ芄槐Ａ裘恐植防嘈偷募庸げ问？捎肫渌鲋挡街柘嘟岷 ，如倒角、喷丸、卷曲、涂层和浸渍。
技术参数 *
| Belt speed | 0,5 - 5 m / Min |
| Average processing speed | |
| in wet mode | approx. 2-2,5 lin. m / Min |
| in dry mode | approx. 1-1,5 lin. m / Min |
| * depending on product characteristics and required final results | |
技法术据
产品厚度：20 mm up to 400 mm
工作宽度：850 mm / 1,200 mm
| Model | 850 | 1200 |
| 1 station | ||
| Length x width x height | 3,9 m x 2,2 m x 3,3 m | 5,4 m x 2,8 m x 3,6 m |
| Total connected load | up to 50 kW | up to 60 kW |
| Water consumption during wet operation | up to 18 m3/h | up to 28 m3/h |
| Air consumption during dry operation | up to 6,000 m3/h | up to 9,000 m3/h |
| 2 stations | ||
| Length x width x height | 5 m x 2,2 m x 3,3 m | 6,8 m x 2,8 m x 3,6 m |
| Total connected load | up to 95 kW | up to 110 kW |
| Water consumption during wet operation | up to 24 m3/h | up to 28 m3/h |
| Air consumption during dry operation | up to 12,000 m3/h | up to 18,000 m3/h |
| 4 stations | ||
| Length x width x height | 9,6 m x 2,2 m x 3,3 m | 11 m x 2,8 m x 3,6 m |
| Total connected load | up to 185 kW | up to 210 kW |
| Water consumption during wet operation | up to 30 m3/h | up to 48 m3/h |
| Air consumption during dry operation | up to 24,000 m3/h | up to 36,000 m3/h |
| 6 stations | ||
| Length x width x height | 10,5 m x 2,2 m x 3,3 m | 14 m x 2,8 m x 3,6 m |
| Total connected load | up to 275 kW | up to 310 kW |
| Water consumption during wet operation | up to 42 m3/h | up to 68 m3/h |
| Air consumption during dry operation | up to 36,000 m3/h | up to 54,000 m3/h |
| 8 stations | ||
| Length x width x height | 12 m x 2,2 m x 3,3 m | 17 m x 2,8 m x 3,6 m |
| Total connected load | up to 365 kW | up to 410 kW |
| Water consumption during wet operation | up to 54 m3/h | up to 88 m3/h |
| Air consumption during dry operation | up to 54,000 m3/h | up to 72,000 m3/h |
| 10 stations | ||
| Length x width x height | 14,2 m x 2,2 m x 3,3 m | 20 m x 2,8 m x 3,6 m |
| Total connected load | up to 455 kW | up to 510 kW |
| Water consumption during wet operation | up to 66 m3/h | up to 108 m3/h |
| Air consumption during dry operation | up to 60,000 m3/h | up to 90,000 m3/h |
